Site analysis is more than just an initial step in a design projects development; it’s a deep dive into the heartbeat of it’s context and environment.
It involves a comprehensive assessment of the physical, environmental, legal, and social characteristics of a site, ensuring that the final design is not only aesthetically pleasing but also functional and sustainable.
Effective site analysis can reveal opportunities and constraints that might not be apparent at first glance, influencing everything from the orientation of the building to the choice of materials and the incorporation of sustainable features.
This guide aims to provide a thorough overview of the site analysis process, equipping architects and students alike with the knowledge and tools needed to conduct detailed evaluations.
KEY TAKEAWAYS
- Comprehensive Assessment is Crucial: Site analysis involves a detailed evaluation of physical, environmental, legal, and social characteristics, ensuring that architectural designs are functional, sustainable, and aesthetically pleasing.
- Informs Design Decisions: Effective site analysis reveals opportunities and constraints, influencing critical aspects of architectural design such as building orientation, material selection, and the incorporation of sustainable features.
- Step-by-Step Analytical Process: The process of site analysis is structured into stages, including preliminary research, field work, and data synthesis, which together ensure a thorough understanding of the site’s characteristics and constraint
- Visual Aids Improve Communication: Utilizing visual aids such as photographic documentation, maps, and 3D models is vital for effectively communicating complex site characteristics and design proposals.
Understanding Site Analysis
Definition and Importance
Site analysis plays a pivotal role in the architectural planning and design process, where a thorough evaluation of the projects site’s conditions is conducted before beginning any design work.
This analysis is pivotal as it informs the design team about the site’s characteristics, helping to optimize building orientation, maximize energy efficiency, and enhance the overall sustainability of the project …to name just a few.
Through understanding the site’s constraints and potentials, we can ensure our design concepts respond appropriately to local climates, landscapes, and urban fabric, thereby reducing unforeseen complications and costs during construction.
Key Components
To perform a comprehensive site analysis, several key components need to be examined:
- Physical and Environmental Conditions: This includes the study of topography, soil type, hydrology, vegetation, and existing structures. These factors determine foundational aspects of the design, such as drainage solutions and the building’s orientation.
- Climate and Microclimate Factors: Analyzing the site’s climate involves understanding seasonal variations, wind patterns, sunlight exposure, and precipitation. Microclimate studies might include specific site-generated conditions like heat generated by paved areas.
- Social and Cultural Context: This involves assessing the site’s impact on and relationship with the surrounding community. Considerations include local lifestyle, historical importance, and community needs which might affect the design.
- Legal and Regulatory Requirements: Every site is subject to local zoning laws, building codes, and other regulatory restrictions. A thorough analysis includes a review of these documents to identify any potential legal obstacles that could affect the project.
- Infrastructure and Services: Understanding the existing infrastructure—such as roads, utilities, and public services—is crucial for integrating the new project into the existing urban or rural framework efficiently.
- Sensory and Aesthetic Aspects: Considerations include views, natural light, noise levels, and other aesthetic factors that might influence the quality of life for future occupants and the overall design of the building.
Each of these components plays a crucial role in shaping the architectural response to the site’s unique characteristics, that ensures the final design is not only feasible but also contextually appropriate and sustainable.
The Step-by-Step Process of Site Analysis
Preliminary Research
Start your site analysis by gathering all available data on the site. This includes maps, previous studies, property records, and any existing plans or proposals. Engage with local planning authorities to understand zoning laws and development restrictions.
This phase (commonly referred to as a desktop study) sets the groundwork for accurate and informed fieldwork.
- Document Collection: Obtain site surveys, topographical maps, and historical data.
- Regulatory Review: Familiarize yourself with zoning regulations, building codes, and any environmental protections that might influence the design.
- Stakeholder Consultations: Conduct interviews or meetings with community members, local businesses, and other stakeholders to gather insights and expectations.
Field Work
This step involves physically visiting the site to observe and document existing conditions. Physical observation helps verify data collected during the preliminary research and provides additional insights that are not evident from maps and documents.
- Physical Surveying: Measure land features, note vegetation types, and identify key landmarks.
- Photographic Documentation: Take extensive photographs from various angles and at different times of the day to capture lighting, traffic patterns, and neighborhood context.
- Environmental Testing: Conduct soil tests, water quality assessments, and other relevant environmental evaluations to understand the site’s suitability for development.
Data Synthesis
The final step is to analyze and synthesize the collected data into a coherent site analysis report. This report should illustrate how the site’s characteristics will influence the architectural design.
- Data Organization: Compile and organize all gathered data systematically.
- Visual Diagramming: Create diagrams that show site features such as sun paths, wind patterns, and views. These visualizations are crucial for understanding the site’s dynamics.
- Report Writing: Develop a comprehensive report that includes all findings with recommendations for the design phase. This should detail the opportunities and constraints presented by the site.
By meticulously following these steps, we as architects and designers can ensure a thorough understanding of the site, providing a solid foundation for meaningful and responsive design approches.
This process not only enhances the project’s feasibility but also its potential to integrate seamlessly into its context, ultimately leading to more successful and sustainable architecture.
Practical Applications, Examples and Case Studies
Practical Applications of Site Analysis
Site analysis provides insights that significantly influence the design and development of a project. Here we discuss how effectively applied site analysis can lead to successful project outcomes across various types of developments.
- Eco-Friendly Housing Development
In a residential project aimed at sustainability, site analysis is pivotal in determining the optimal orientation for the houses to maximize solar gain in the winter and minimize heat during the summer. The analysis would provide detailed assessments of the sun’s path, prevailing winds, and local vegetation, which inform decisions about placement of windows, insulation levels, and even the types of plants used in the landscaping to enhance energy efficiency. - Commercial Complex in Urban Setting
For a new commercial complex in an urban environment, site analysis can help address potential traffic issues and pedestrian flow. For example, the study would include traffic pattern assessments during different times of the day and week, that would influence the placement of entrances, parking lot design, and the location of public transport stops. This careful planning helps to ensure ease of access and safety for visitors and workers, significantly enhancing the site’s usability. - Areas of Historical Importance
When tasked with working in an area of historical importance, we can use site analysis to integrate new constructions while preserving the area’s historical essence. This would involve evaluating the architectural styles, materials used in existing buildings, and historical land use patterns. The insights gained would guide the design process to complement the old structures with new developments, maintaining a coherent aesthetic and cultural narrative throughout the district.
Case Studies
Each of the following case studies provides a deeper look into the site analysis process and its direct impact on the design and implementation of significant projects.
- Case Study 1: Suburban Educational Complex
A comprehensive site analysis was conducted for a new educational complex in a suburban area. The analysis focused on environmental aspects, local demographics, and available infrastructure. It revealed a high water table and poor soil conditions, which led to innovative foundation solutions and the integration of rainwater harvesting systems in the project. The design also included multiple access points to ease traffic during school events, enhancing safety and accessibility. - Case Study 2: Mixed-Use Development
This project combined residential, commercial, and recreational spaces in a single development. Site analysis included detailed studies of local market demands, existing land use, and environmental impact assessments. The findings influenced the distribution of space—allocating more area to residential units in quieter zones and placing entertainment and retail spaces nearer to main roads to attract passersby and reduce noise impact on residents.
The practical applications and detailed case studies above, illustrate the transformative power of thorough site analysis in architecture.
By meticulously examining every facet of the site, we can design spaces that not only meet the functional needs of their users but also enhance the environmental and social fabric of the community.
These examples underline the necessity of site analysis as a fundamental component of our project planning, and ensure that projects are not only feasible but also thriving environments for future occupants.
Example Using Site Analysis Diagrams

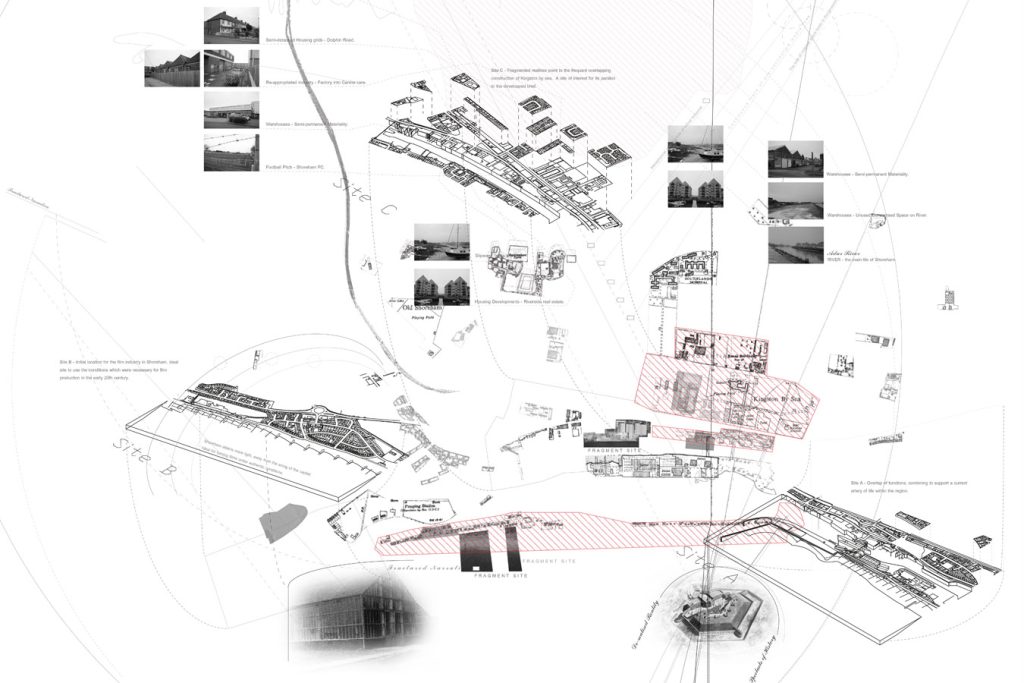

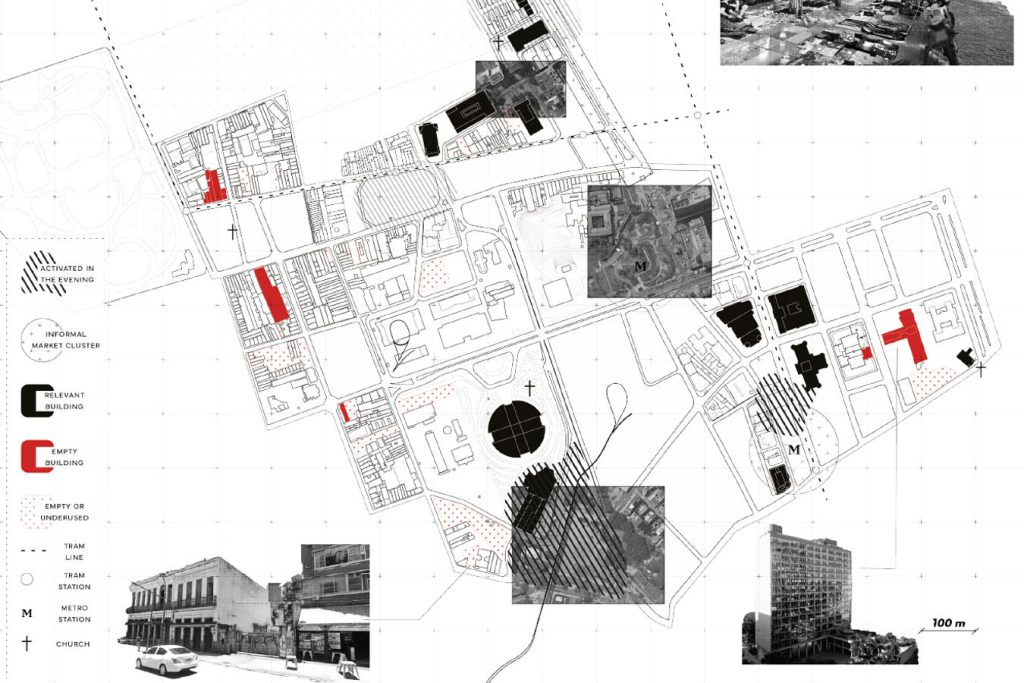

Architectural site analysis diagrams provide visual representations that synthesize a site’s physical, environmental, and socio-cultural data, providing us with essential insights for informed design decisions.
These diagrams highlight key elements such as topography, climate, vegetation, and usage patterns, facilitating a comprehensive understanding of the site’s characteristics and constraints
Referred and referenced to throughout the design and construction process, the below list highlights some of the key areas that should be investigated, along with diagram examples of how site analysis recordings can be presented.
These examples were created using the below site analysis drawing symbols kit in Adobe Photoshop.

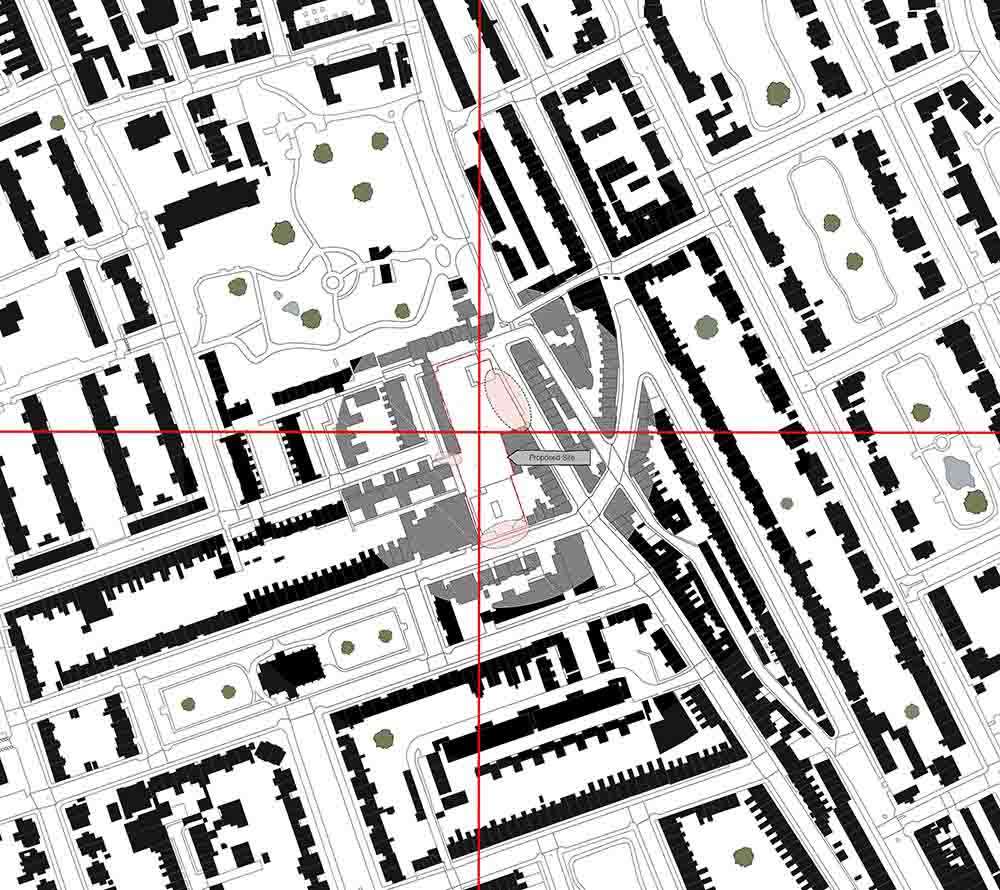

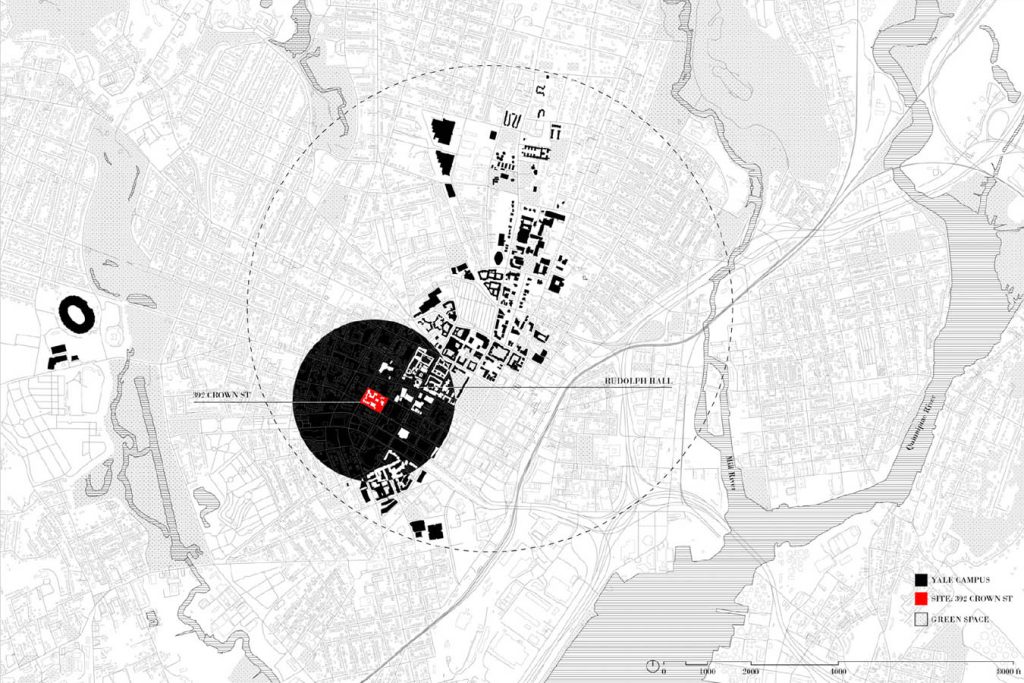

01 – General
- Geographic location
- Site boundary
- Entrance locations and types
- Site security
- Existing buildings

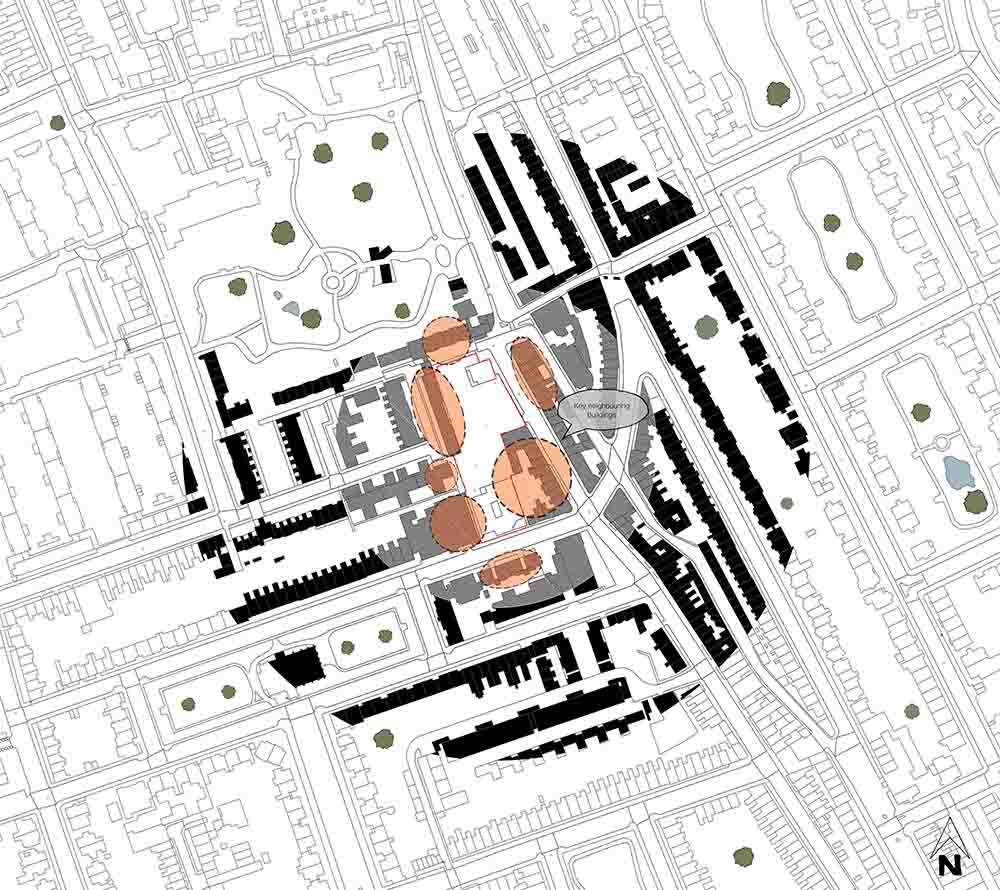

02 – Buildings analysis
- Distances
- Heights
- Uses
- Vernacular
- Site lines
- Rights to light
- Legal restrictions
- Noise levels
03 – Legal Restrictions
- Conservation areas
- Covenants and easements
- Rights of way
- SSSI ( Site of Special Scientific Interest)
- Listings (Grade II, II*, I)
- TPO’s (Tree preservation orders)
- Previous planning permissions and applications
04 – Access and circulation
- Public routes
- Private routes
- Vehicle access
- Pedestrian access
- Existing site circulation routes within
05 – Topography
- Levels
- Gradients
- Key features/restrictions
- Exposure
06 – Views
- Private views out
- Public views in

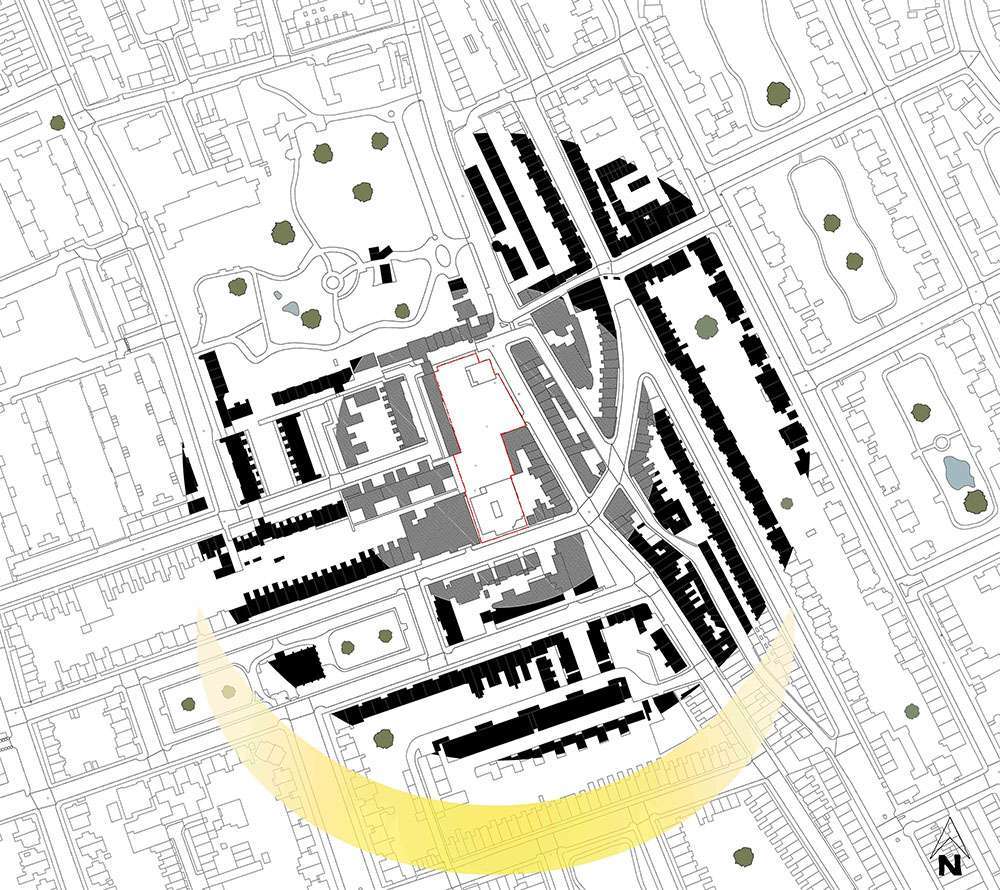

07 – Sun paths
- Sun paths
- Solar gains
- Shading

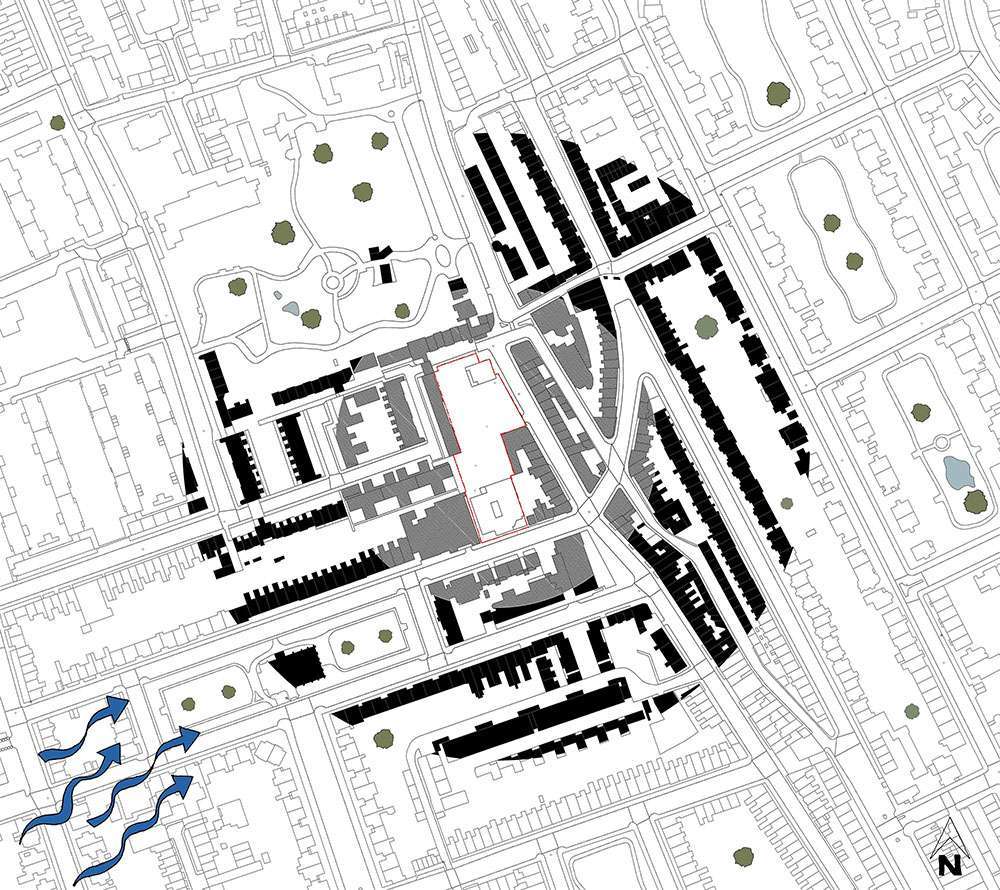

08 – Site wind analysis architecture
- Prevailing direction
- Shelter
- Exposure

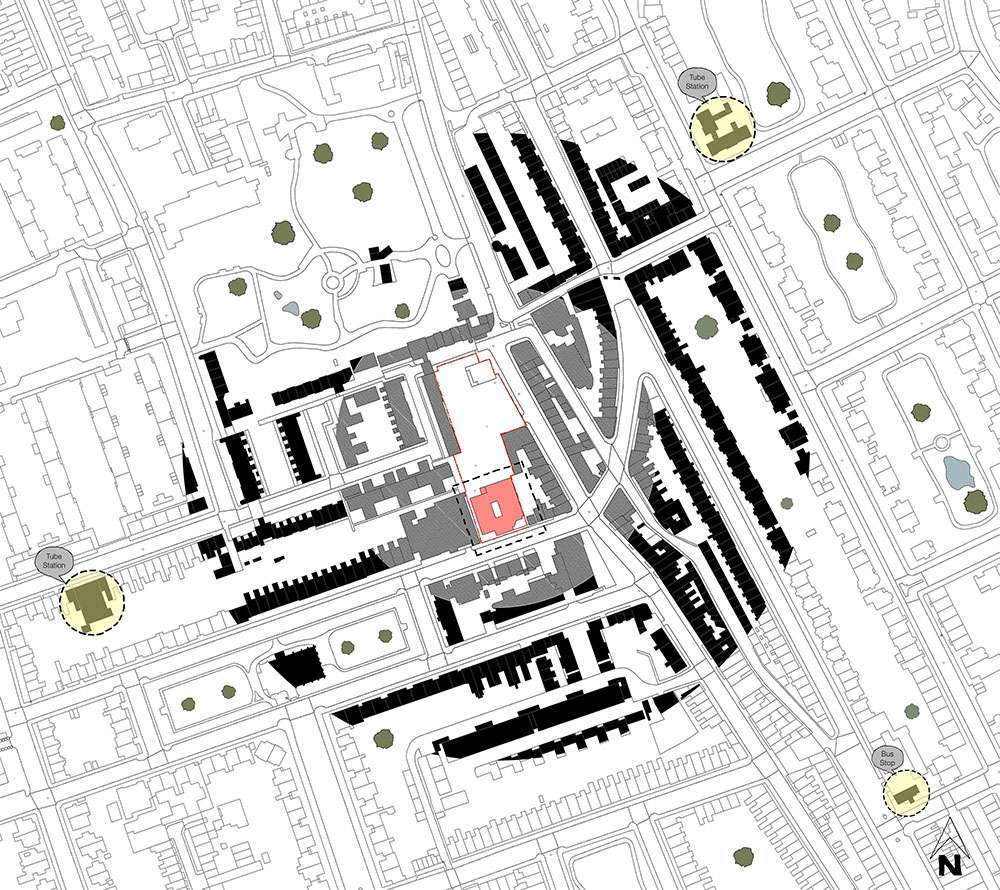

09 – Public Transport Links
- Bus’s
- Train’s
- Taxi’s

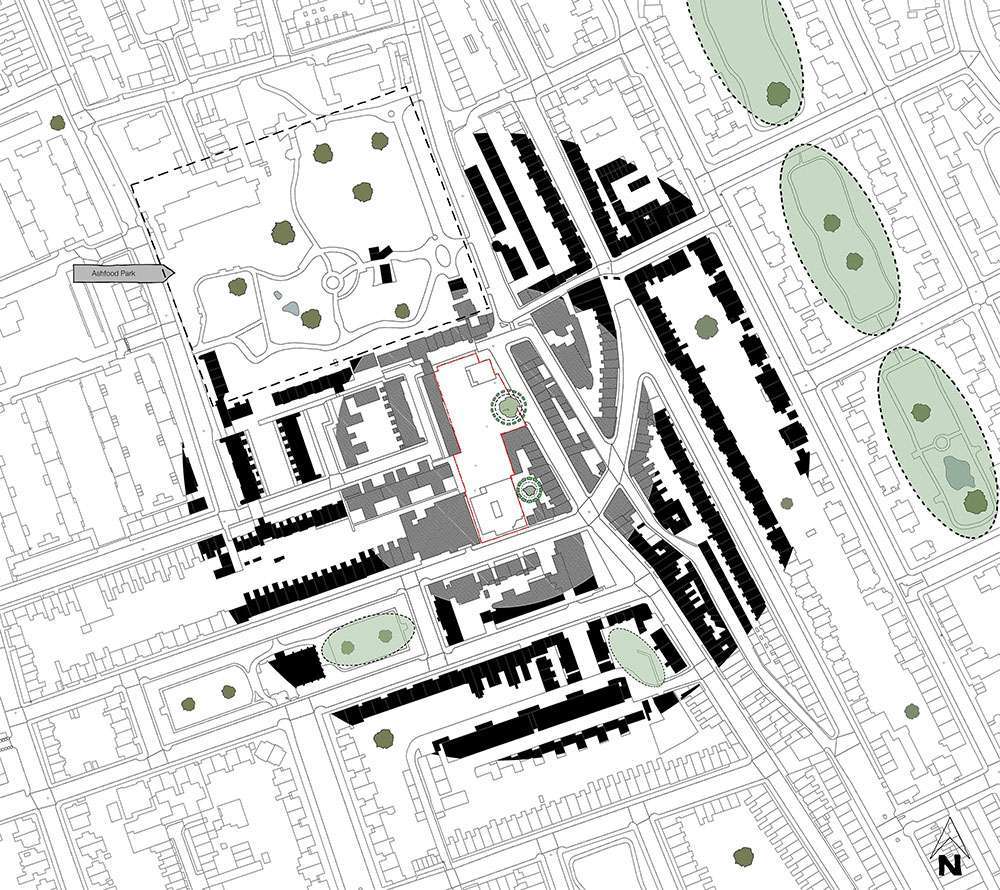

010 – Trees and vegetation
- TPO’s and protected species
- Root protection areas
- Items for removal
- Items to maintain
- Ownerships

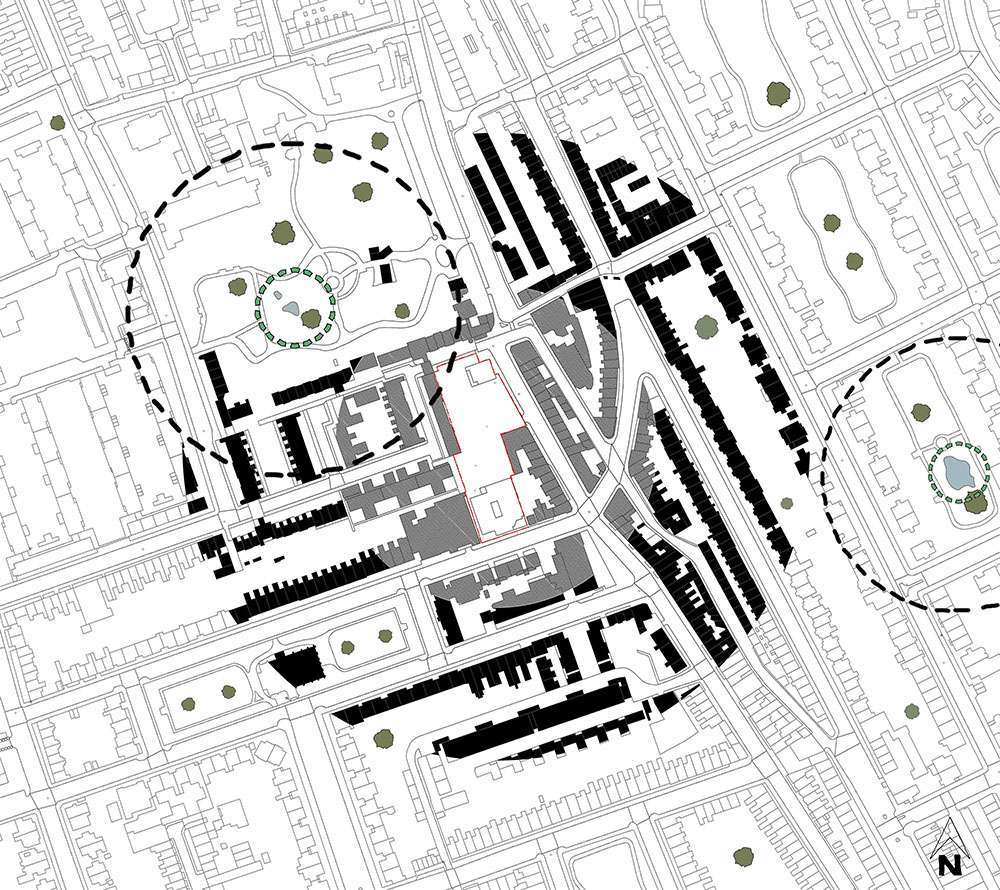

011 – Ecology
- Protected species
- Protected zones
- Impacts

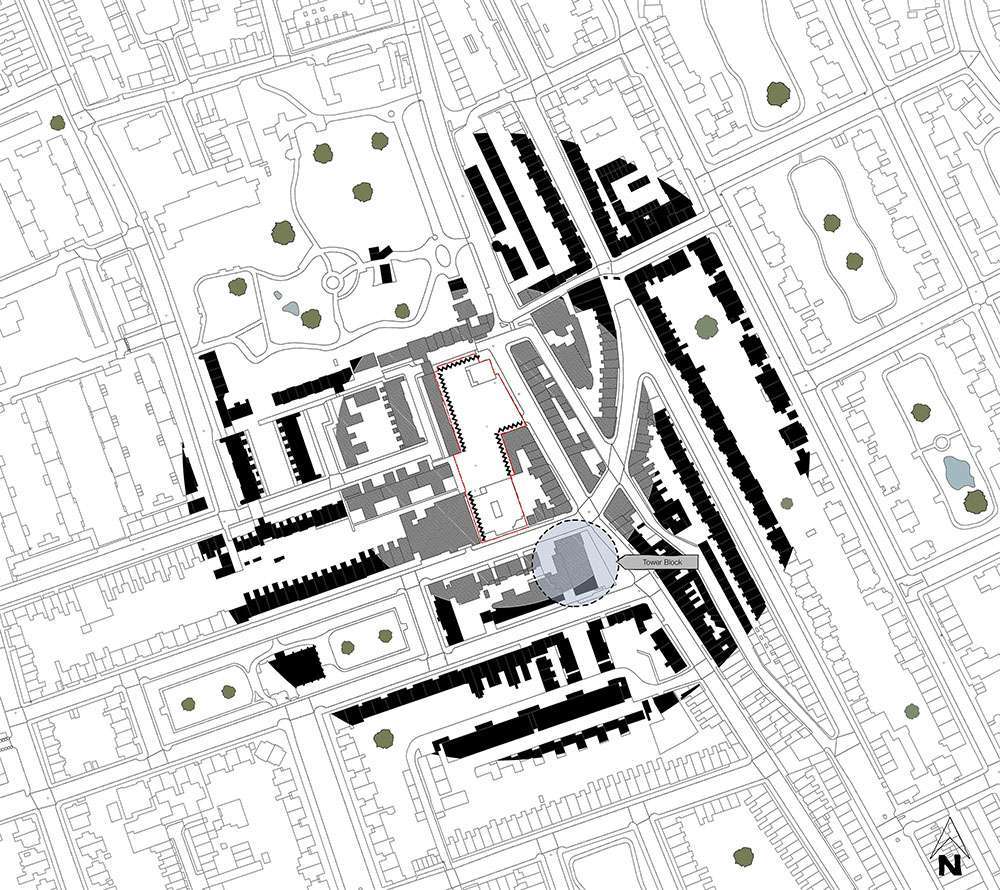

012 – Site restrictions
- Visibility
- Light
- Views
- Neighbors / adjacent conditions
- Pollution
- Flooding
- Land slides
013 – Features
- Areas to expose/use
- Areas to improve
- Areas to hide
014 – Hazards
- (Electricity lines, Drainage, Telephone lines, Sub-stations)
- Derelict Buildings
- Unfinished building works
Tools and Resources for Effective Site Analysis
Essential Tools for Site Analysis
The right tools can significantly enhance the efficiency and accuracy of your analysis. This subsection introduces key tools and software that we rely on to gather and analyze data effectively.
- GIS Software: Geographic Information Systems (GIS) are crucial for mapping and analyzing spatial data, allowing architects to visualize site features in relation to one another and to the broader environment. Programs like ArcGIS or QGIS offer powerful functionality for overlaying various data layers, such as zoning laws, topography, and infrastructure.
- CAD Software: Computer-Aided Design (CAD) tools, such as AutoCAD and SketchUp, are essential for drawing precise site plans and sections based on gathered data. These tools help in visualizing the potential impact of design decisions in the context of the site’s conditions.
- Environmental Simulation Software: Tools like Autodesk’s Ecotect Analysis and IES VE enable architects to simulate sunlight, shadow, and energy interactions based on site conditions. This can be invaluable for assessing building performance and sustainability.
- Mobile Surveying Apps: Applications such as Site Audit Pro and MagicPlan allow architects to gather and organize site data directly from their mobile devices, making fieldwork more streamlined and accurate.
Websites:
Books:
General:
- Architecture competitions entries
- End of year shows
- Exhibitions
Also check out our own Architecture site analysis diagram and presentation examples on Pinterest
Downloadable Resources
These downloadable resources that offer practical assistance in the form of templates, checklists, and guides.
- Site Analysis Checklists: Our free and downloadable checklist below covers all critical aspects of site analysis ensuring that no important details are missed during your survey.
- Template Diagrams and Sheets: Our site analysis diagrams, help to standardize the presentation of information, making it easier to interpret and use in design proposals.
- E-books and Guides: We take a deep look at how to translate your analysis into working design proposals in our digital resource The Concept Kit.
Do you find design projects difficult?
...Remove the guesswork, and start designing award winning projects.
Following on from the above, here we have provided two site analysis checklists that firstly cover all of the primary areas of the site analysis process and secondly, provide a checklist outlining what to assess during your first site visit.
To download our free checklists, simply sign up with your email below and follow the download link provided:
Free checklist
Sign up to our mailing list to receive our free Site Analysis and Site Visit Checklists
Visual Aids
Visual aids are integral to understanding and communicating the complexities of site analysis in architecture.
Visual tools can enhance the comprehension and presentation of your site analysis, ensuring that all stakeholders, from clients to design teams, can visualize the potential of a project.
Types of Visual Aids
- Photographic Documentation: Before and after photos, as well as ongoing site conditions, provide a real-time look at the environmental and urban context. These visuals help stakeholders understand the existing conditions and the impact of potential changes.

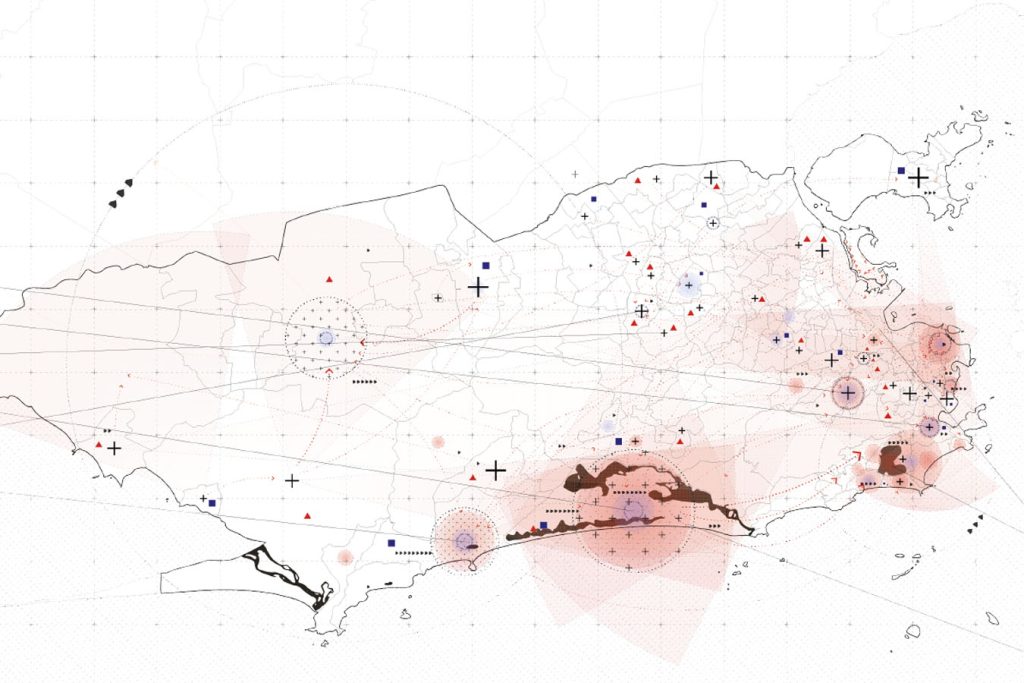

- Maps and Topographical Layouts: Utilizing geographic information system (GIS) maps and detailed topographical layouts can help architects and planners assess the geography and features of the site. These maps are essential for understanding slopes, elevation, and other physical attributes that will affect the design.
- Sun Path and Wind Pattern Diagrams: These diagrams are crucial for sustainable design, showing how natural elements interact with the site. Sun path diagrams help in planning building orientation and window placement for optimal solar gain, while wind patterns can influence the design of outdoor spaces and ventilation systems.
- 3D Models and Renderings: Advanced software can generate 3D visualizations of the proposed project within the actual site conditions. This not only helps in presenting a realistic view of the finished project but also allows for virtual tours that can be instrumental in the approval and stakeholder buy-in process.
Creating Effective Visual Aids
- Clarity and Precision: Visuals should be clear and precise, with annotations where necessary to highlight key features or data points. This ensures that the information is accessible to all stakeholders, regardless of their technical background.
- Interactivity: Interactive elements such as clickable layers on digital maps or virtual reality tours of the site can engage stakeholders more deeply, allowing them to explore different aspects of the analysis and design proposals at their own pace.
- Integration with Textual Content: Visual aids should be effectively integrated with the textual content of the report or presentation. Each visual should have a clear reference in the text, explaining its relevance and what it illustrates about the site analysis.
Tools and Software for Developing Visual Aids
- GIS Software: Tools like ArcGIS provide powerful capabilities for mapping and analyzing geographical data, which can be used to create detailed site analysis maps.
- CAD and BIM Software: Programs like AutoCAD and Revit allow architects to create precise drawings and models that can be used for both analysis and presentation of data.
- Visualization Software: Software such as SketchUp and 3ds Max can be used to create high-quality 3D renderings and animations that bring the project to life.
Incorporating visual aids into your site analysis reports and presentations not only enhances the understanding of complex data but also facilitates more informed decision-making by clearly communicating design intent and site potential.
To Sum Up: The Power of Thorough Site Analysis in Architecture
As demonstrated, a well-conducted site analysis not only informs the practical aspects of a project but also deeply influences the creative process, enabling architects to make decisions that are environmentally responsible, contextually appropriate, and culturally sensitive.
Effective site analysis acts as a linchpin in the development process, connecting diverse aspects such as environmental conditions, user needs, and aesthetic values with the technical requirements of construction and urban planning.
By thoroughly understanding the site, we as architects can foresee potential challenges and harness opportunities that enhance both the functionality and the impact of their designs.
Moreover, the integration of advanced tools and technologies, as discussed, provides architects and planners with the means to present their findings and design concepts in ways that are both accessible and engaging to clients, stakeholders, and the community.
Visual aids and interactive models, in particular, play a crucial role in bridging the gap between complex data and actionable insights, making site analysis not just a procedural step, but a compelling narrative of what a project can achieve.
As we continue to face global challenges such as urbanization, climate change, and resource scarcity, the importance of site analysis will only grow.
It is through meticulous site examination that sustainable and innovative solutions can be devised, ensuring that the built environment serves not just the present but also future generations.
This guide aims to inspire and equip young architects and students with the knowledge to perform insightful site analyses, driving the creation of spaces that are not merely places to inhabit but are thoughtful, sustainable, and integral parts of the larger world tapestry.
Through the mastery of site analysis, we can contribute to a more sustainable, functional, and aesthetically pleasing built environment.
Image credits: Cover image – Beatriz Caon Amenta (Thank you Beatriz!)
