Timber Detail Kit
60+ standard and bespoke timber construction details £ 19
99
- 60+ CAD Construction Details.
- Fully Annotated and Titled.
- Timber Frame, SIP's, & CLT.
- Preset Layers.
- Bespoke Examples
- Bonus Component Library.
- Lifetime Updates
Timber Construction Detail Kit
£19.99
A collection of 60+ standard and bespoke timber construction details for post and beam, SIP, and CLT constructions.
- 60+ CAD Construction Details.
- Fully Annotated and Titled.
- Drawing Component & Hatch Library.
- Detailed Section Examples.
- Post and Beam, SIP, & CLT Construction.
"As a recent architectural graduate, I found the Timber Detail Kit to be an invaluable resource in my early professional practice. Its provided me with clear and practical drawings, allowing me to bridge the gap between theoretical knowledge and real-world application."
Angus Springfield
Architectural Assistant ⭐⭐⭐⭐⭐
Improve your knowledge on timber construction with an affordable, adaptable, and comprehensive detailing library.
We understand how difficult construction drawings can be...
...is this you?
Find it difficult navigating construction detailing issues, and want to make the process easier through a tried and tested standard library of drawings.
Looking for real world practical examples that can be applied and adapted to any type of timber constructed project.
Require ready-to-use, editable details that can significantly simplify the process of designing with timber.
Need a cost-efficient way to access a comprehensive set of high-quality construction details, saving both time and money.
Want to enhance your technical understanding and skills in working with timber through any CAD based software.
Want a library of solutions to common and complex construction challenges to improve the quality of your drawings.
Ready to use timber details
Use tried and tested details to elevate your drawings...
...and have confidence in knowing that you're starting with a drawing that works.

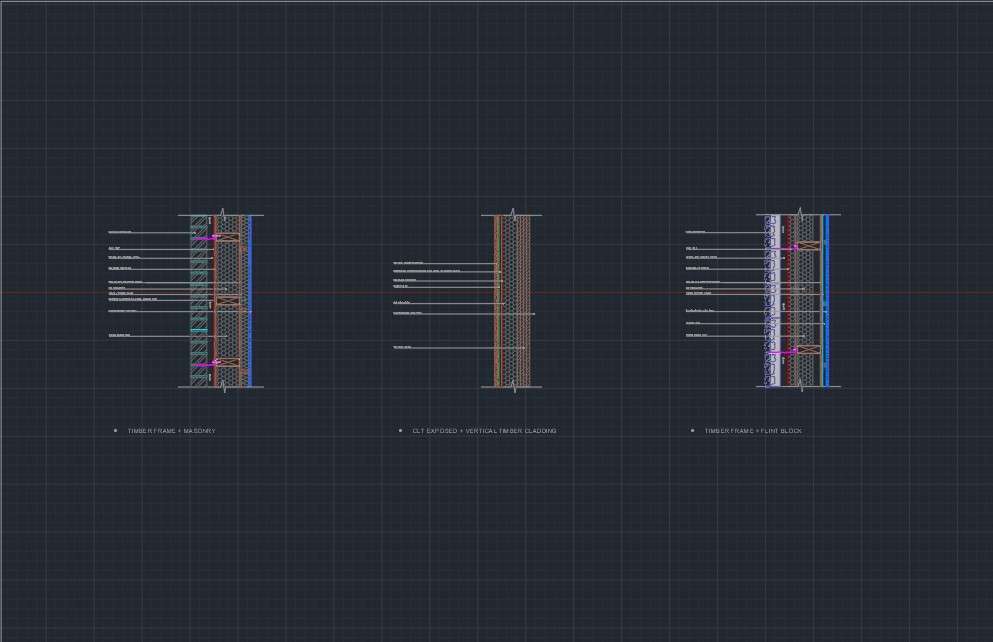

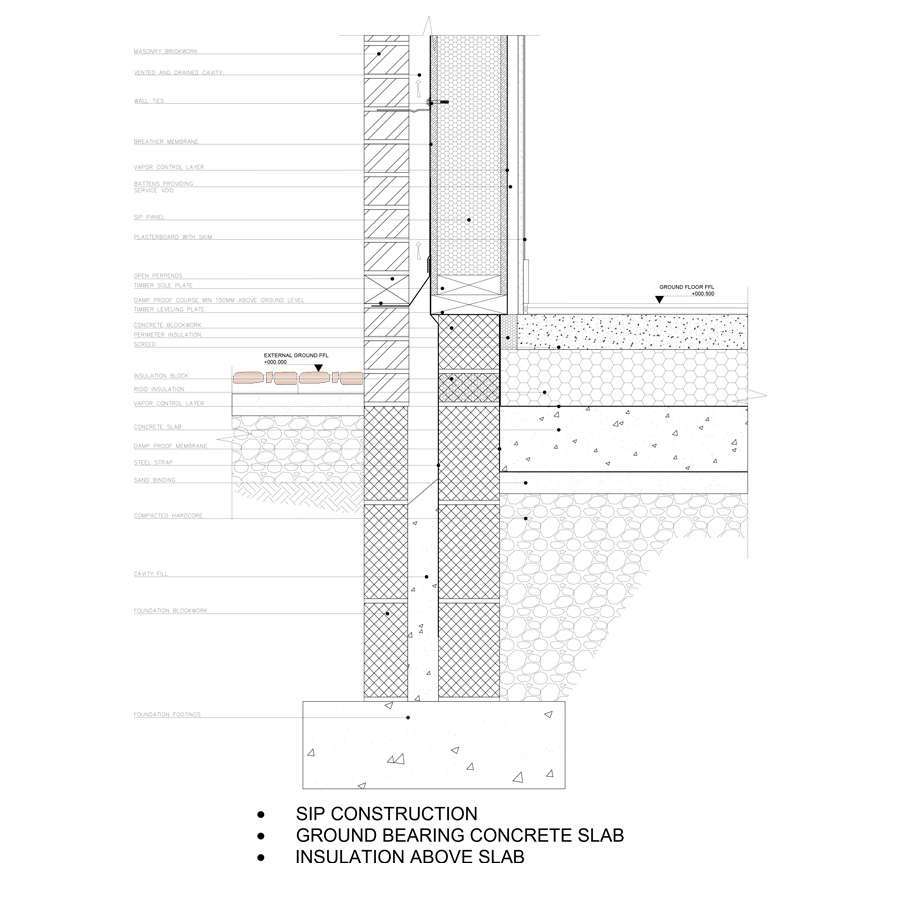

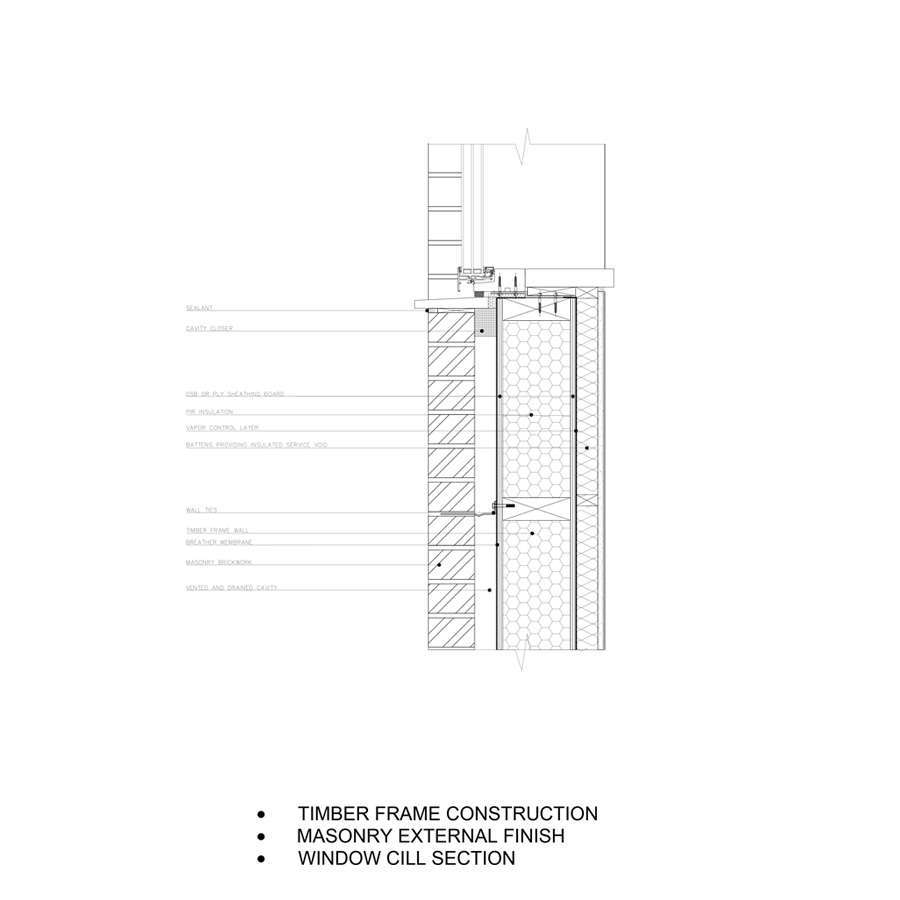

64+ Foundation, wall, opening, and roof standard and bespoke CAD details in section and plan.
Covering timber frame, Structural Insulated Panels (SIPS), and cross-laminated timber (CLT).
For masonry, timber cladding, stone, and render external applications.
Each construction component is fully editable and organized via a colored layering system.

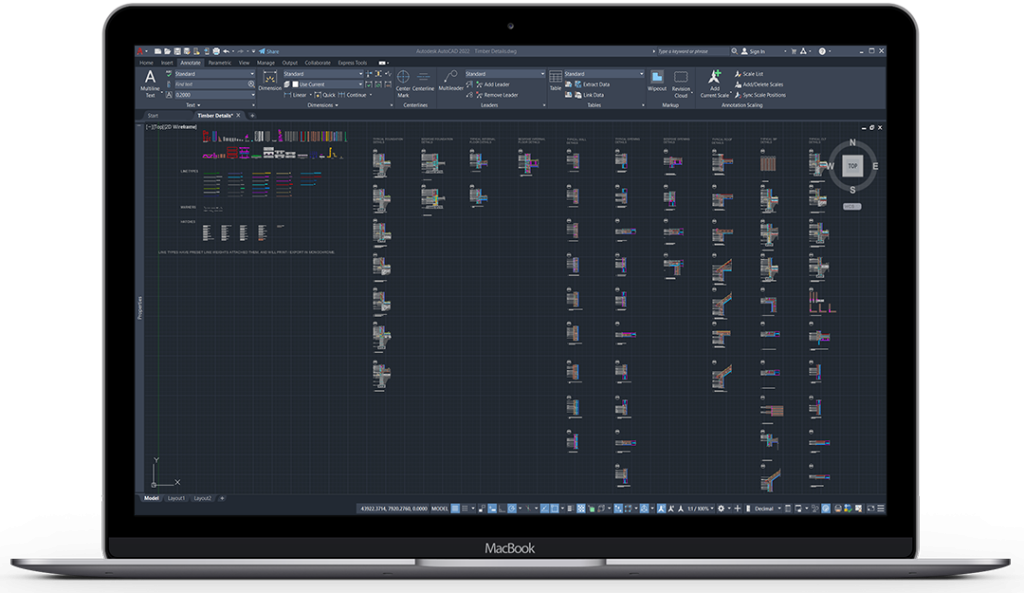

DWG file ready to be imported into any CAD based software for editing and development.
Print ready directly from AutoCAD with pre-assigned line weights and types.
Limit the time searching for details, and focus of their development.
What's inside?
"I purchased the Timber Detail Kit shortly after completing my RIBA Part II, and I wish I had found it sooner. During my studies, the focus was often on creating striking visuals rather than the nitty-gritty of technical detailing. This kit has been a game-changer, helping me understand the intricacies of timber frame construction that were largely overlooked in school"
Cian Mullard
Architecture Designer ⭐⭐⭐⭐⭐
64+ CAD Details
Make detailing timber construction projects easier....

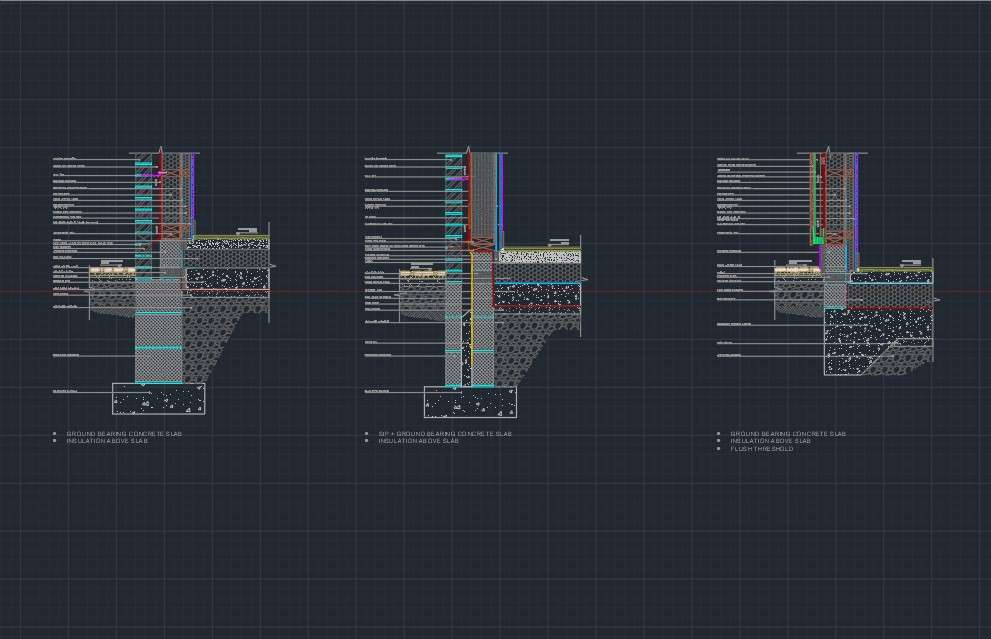

Foundation and Floor Details
18 Concrete slab, beam and block, and suspended timber floor details.
Typical Wall Details
12 independent wall make-ups covering masonry, timber cladding, stone, and render.

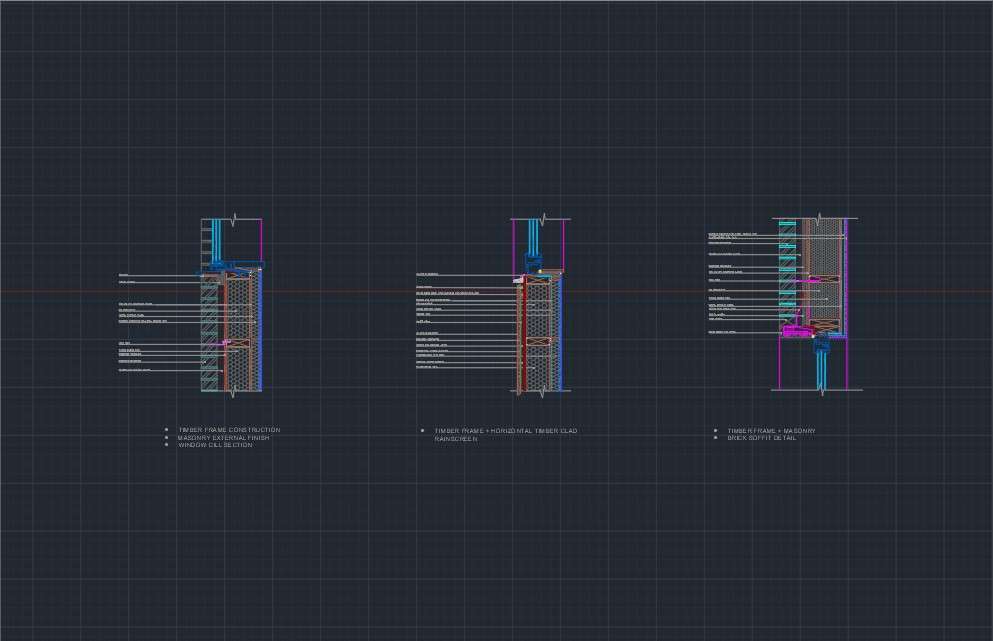

Windows and Door Details
24 window and door header and sill details for both stepped and flush thresholds.

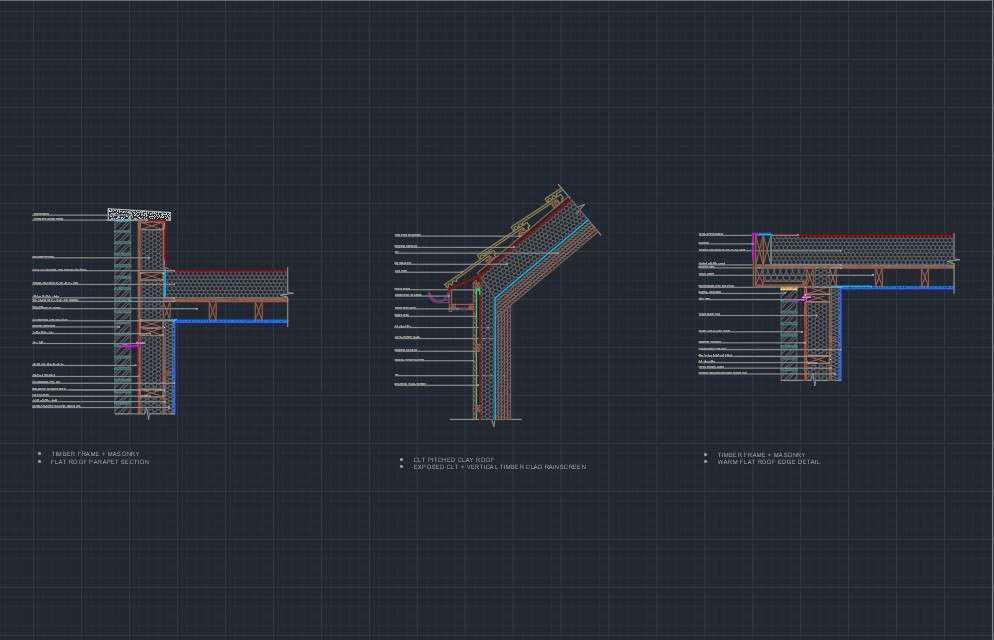

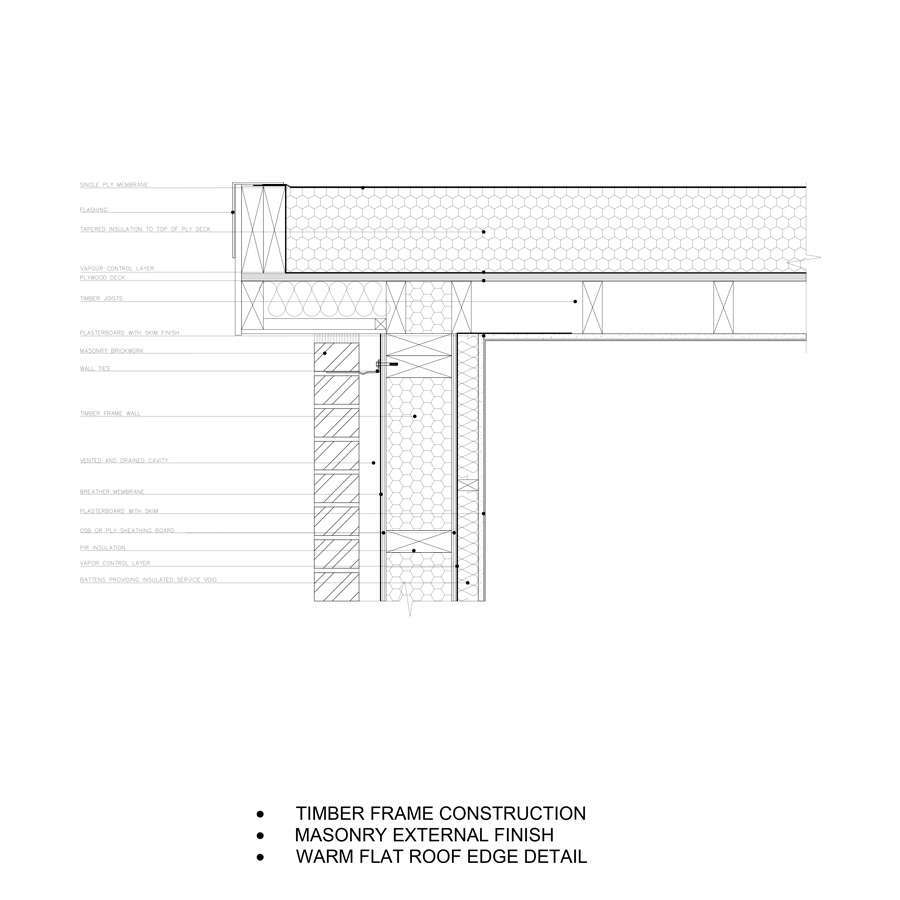

Flat and Pitched Roof Details
14 flat and pitched roof details for single ply membrane, clad, and tiled roof make-up's.
Special Bonus
We've included an extra drawing resource...
Drawing Components
Here we provide a library of construction elements, line types, markers, and hatches to help take your detailing to the next level!
...All drawn at 1:1 in metric units.
Save time searching for CAD blocks.
There is nothing worse than wasting valuable drawing time trying to find the “right”detail.
Know how to start a new project.
These details eliminate the guesswork, and provide a clear starting point for every new project.
Improve your understanding.
Learn the different timber construction methods through tried and tested details.
Not sure? …Download a free sample
"By providing detailed CAD templates, this kit has greatly helped to ensure that my work is not only beautiful but also structurally sound and buildable"
Timothy Horsely
Architect ⭐⭐⭐⭐⭐
Plans & Pricing
Detailing just got easier!
Frequently Asked Questions.
These are drawn at a 1:1 scale in Metric units.
2018 and newer. But we are happy to down save any file for later versions.
Yes there is an LT version supplied
Yes, the details can be imported into Revit (or any other CAD based software) as a DWG file.
No, the template can be imported into any program that is compatible with DWG files. (Revit, ArchiCAD, SketchUP, Vector Works, Chief Architect, Rhino etc)
Autodesk AutoCAD or any CAD based software that is capable of importing a DWG file. So this kit can even be opened up in SketchUp!
Don’t have the right sofware? – Download a trial from your favorite supplier.
Your copy will be forever accessible and downloadable via your teachable account. And if you forget that …we’ll send you another one!
This kit is for anyone who draws CAD based details, and wants to establish a tried and tested system to improve the efficiency and quality of their drawings.
- Undergraduate students
- Graduate students
- Postgraduate students
- Architectural interns and assistants
- Architects of all levels
No, not at all. This kit has been designed to remove as much of the guess work from the detailing process as possible.
